Description
Application of Product

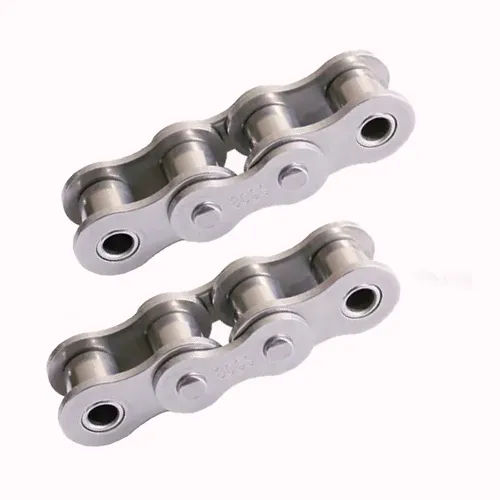

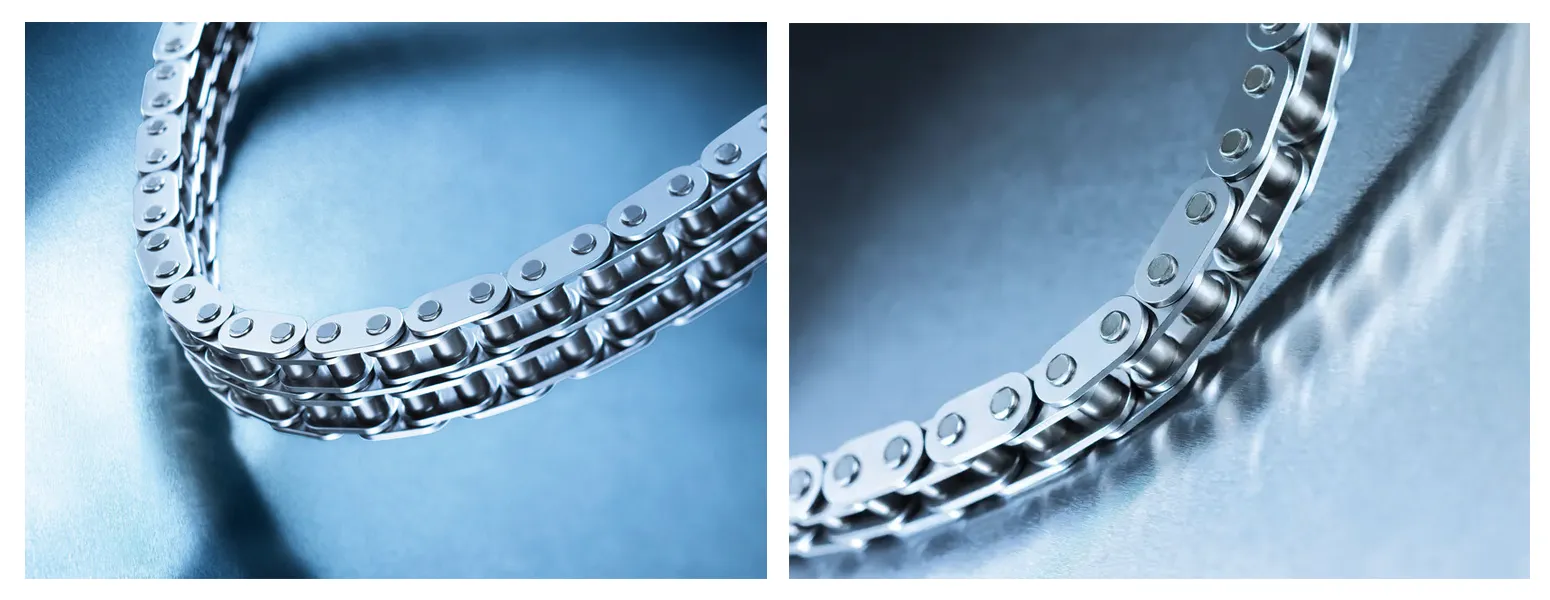

The 48BSS-1 simplex short pitch stainless steel roller chain is widely used in industrial environments that require resistance to corrosion, high temperatures, or low temperatures. Made from high-quality 304 or 316 stainless steel, it offers excellent corrosion resistance, making it suitable for industries such as chemical, food processing, pharmaceuticals, and marine equipment.
This chain is particularly well-suited for operation in environments that are damp, dusty, or exposed to strong chemical corrosion. It remains stable under extreme temperature conditions, with an operating range from -40°C to +400°C, making it adaptable to a variety of complex environments and ensuring long-term reliability of equipment.
The short pitch design of the 48BSS-1 chain excels in high-load, low-speed transmission systems. It is commonly used in conveyor belts, elevators, packaging machinery, and other equipment, providing smooth and low-noise power transmission to ensure the efficient operation of machinery.
In summary, the 48BSS-1 simplex short pitch stainless steel roller chain, with its superior corrosion resistance and high load-bearing capacity, has become an indispensable component in various industrial applications.
Detailed specifications
| DIN/ISO Chain No. | Pitch (P) | Roller Diameter (d1 max) | Width Between Inner Plates (b1 min) | Pin Diameter (d2 max) | Pin Length (L max / Lc max) | Inner Plate Depth (h2 max) | Plate Thickness (t/T max) | Ultimate Tensile Strength (Q min) | Average Tensile Strength (Q0) | Weight per Meter (q) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kN) | (kN) | (kg/m) | ||
| 04BSS-1 | 6 | 4 | 2.8 | 1.85 | 6.8 | 7.8 | 5 | 0.6 | 2 | 0.11 | |
| 05BSS-1 | 8 | 5 | 3 | 2.31 | 8.2 | 8.9 | 7.1 | 0.8 | 3 | 3.54 | 0.2 |
| 06BSS-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.1 | 8.2 | 1.3 | 5.4 | 6.24 | 0.41 |
| 08BSS-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.6 | 10.8 | 11.64 | 0.69 |
| 10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 20.9 | 14.7 | 1.7 | 13.44 | 16.5 | 0.93 |
| 12BSS-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 24.2 | 16 | 1.85 | 17.4 | 19.3 | 1.15 |
| 16BSS-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36.1 | 37.4 | 21 | 4.15/3.1 | 3.6 | 43.68 | 2.71 |
| 20BSS-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.3 | 45 | 26.4 | 1.5/3.5 | 57 | 64.02 | 3.7 |
| 24BSS-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 57.8 | 33.2 | 6.0/4.8 | 96 | 106.8 | 7.1 |
| 28BSS-1 | 44.45 | 27.94 | 30.99 | 15.9 | 65.1 | 69.5 | 36.7 | 7.5/6.0 | 120 | 133.2 | 8.5 |
| 32BSS-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66 | 71 | 42 | 7.0/6.0 | 150 | 166.5 | 10.25 |
| 40BSS-1 | 63.5 | 39.37 | 38.1 | 22.89 | 82.2 | 89.2 | 52.96 | 8.5/8.0 | 213 | 236.4 | 16.35 |
| 48BSS-1 | 76.2 | 48.26 | 45.72 | 29.24 | 99.1 | 107 | 63.8 | 44905 | 336 | 372.96 | 25 |
Customer Reviews
⭐⭐⭐⭐⭐ Carlos Martínez, Maintenance Manager, TechPro Solutions, Mexico
We’ve been using the 48BSS-1 Simplex Short Pitch Stainless Steel Roller Chain in our conveyor systems for the past few months, and it has performed excellently. The chain provides smooth and reliable power transmission, with very little noise or vibration. It’s designed to handle heavy loads and high-speed operations, which is crucial for our demanding manufacturing environment. Highly recommended for those looking for durability in challenging conditions.
⭐⭐⭐⭐⭐ Emma Johansson, Production Supervisor, Arctic Industries, Sweden
The 48BSS-1 Simplex Chain was very easy to install on our automated assembly lines. It handles high-speed operations effortlessly, and we’ve noticed a significant reduction in system downtime. The wear resistance is impressive, and it performs well even in our cold storage facilities. A reliable choice for high-demand applications.
⭐⭐⭐⭐⭐ Marco Rossi, Equipment Manager, Verona Logistics, Italy
We’ve been using the 48BSS-1 chain in our heavy machinery, and it has exceeded all our expectations. The Simplex Short Pitch Stainless Steel Roller Chain offers outstanding durability, with consistent performance even under high torque loads. It’s easy to maintain, and we’ve had no issues with wear or fatigue. Definitely a worthwhile investment for our operations.
⭐⭐⭐⭐⭐ Olivia Smith, Operations Director, Highland Construction, UK
This chain is incredibly tough and reliable. We’ve been using the 48BSS-1 Simplex Short Pitch Stainless Steel Roller Chain in our construction equipment for several months now, and it’s been performing flawlessly. It significantly reduces vibration, helping everything run smoothly, even in harsh environments. While it’s priced slightly higher than some alternatives, the reliability it offers makes it well worth the investment. We would definitely buy it again.
Maintenance and Care of 48BSS-1 Simplex Short Pitch Stainless Steel Roller Chain
Maintaining the 48BSS-1 Simplex Short Pitch Stainless Steel Roller Chain primarily involves keeping it clean and properly lubricated. Regularly checking the chain’s tension is important to ensure it’s within the right range, which helps extend its lifespan. A chain that is either too loose or too tight can affect performance and increase wear.
During operation, it’s important to prevent the chain from being exposed to excessive dust and dirt. Regular cleaning can help avoid unnecessary wear. After cleaning, make sure to apply the right amount of lubricant to reduce friction and ensure smooth operation.
These simple maintenance steps can significantly improve the performance of the 48BSS-1 Simplex Chain, ensuring it operates reliably and efficiently in various working environments.
Stainless Steel Sprockets for Chains
Stainless steel sprockets are a critical component of any chain system, ensuring smooth interaction between the sprockets and chains for efficient mechanical operation. The corrosion-resistant properties of stainless steel guarantee long-lasting durability, making these sprockets ideal for a wide range of applications. The precise tooth engagement of the sprockets with the links of the chain ensures reliable power transmission.
Whether paired with stainless steel chains or used in high-load, high-speed systems, these sprockets significantly enhance overall performance, reducing wear and tear while maintaining high efficiency. In industries where reliability is crucial, the combination of simplex chain and stainless steel sprockets becomes indispensable for seamless functionality.
FAQ
How do I properly maintain the 48BSS-1 Simplex Short Pitch Stainless Steel Roller Chain?
To maintain the 48BSS-1 Simplex chain, regularly check its tension and ensure it’s within the optimal range. Clean the chain to prevent dust and dirt buildup, and apply the appropriate amount of lubricant to reduce friction and ensure smooth operation.
What industries can benefit from using the 48BSS-1 Simplex Short Pitch Stainless Steel Roller Chain?
The 48BSS-1 chain is ideal for industries requiring corrosion resistance and durability, such as chemical, food processing, pharmaceuticals, and marine applications. Its ability to handle high-speed and high-load operations makes it suitable for demanding environments.
What are the key benefits of stainless steel sprockets when paired with simplex chains?
Stainless steel sprockets provide excellent durability, corrosion resistance, and reliable power transmission when paired with simplex chains. They help reduce wear and tear, improving system efficiency, especially in high-load and high-speed applications.
Can the 48BSS-1 Simplex chain be used in extreme temperatures?
Yes, the 48BSS-1 Simplex Short Pitch Stainless Steel Roller Chain is designed to perform in extreme temperatures, with an operating range from -40°C to +400°C, making it suitable for a variety of tough working conditions.
