Description

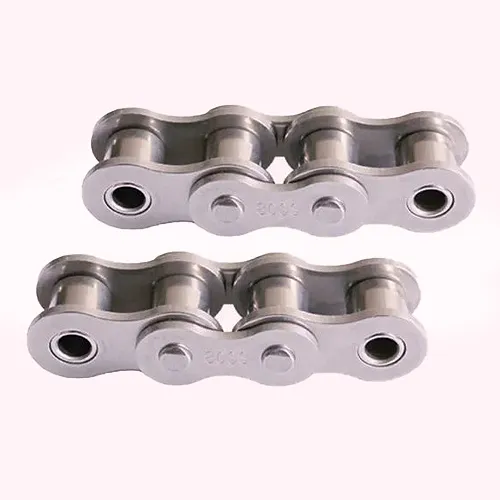

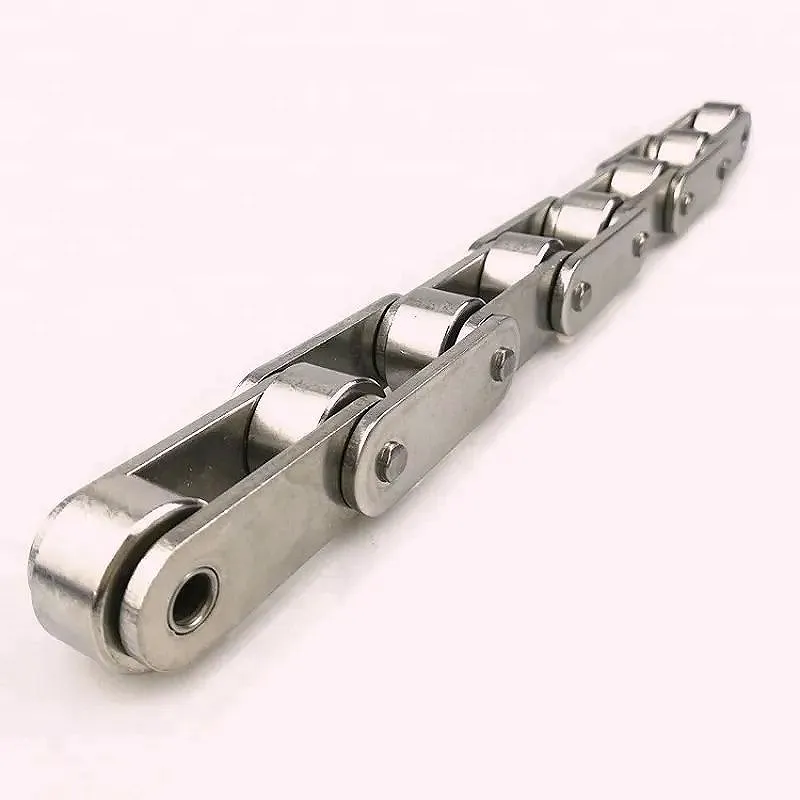

20ASS-1/100SS Simplex Short Pitch Stainless Steel Roller Chain Overview
The 20ASS-1/100SS Simplex short pitch stainless steel roller chain is specially designed for industrial applications, offering excellent corrosion resistance and high strength. It is ideal for transmission systems that require durability and stability. Made from stainless steel, this chain is capable of performing reliably in environments exposed to moisture or chemical corrosion. It is widely used in industries such as food processing, packaging, and other manufacturing sectors.
20ASS-1/100SS Simplex Short Pitch Stainless Steel Roller Chain Detailed Specifications
| DIN/ISO | ANSI | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L(max) | Lc(max) | |||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
| 20ASS-1 | 100SS | 31.75 | 19.05 | 18.9 | 9.53 | 40.4 | 44.7 | 30 | 4 | 53.1 | 65.52 | 3.91 |
Customer Reviews
⭐⭐⭐⭐⭐
Luis Hernández, Maintenance Supervisor, TechMachines Inc., Mexico
We’ve been using the 20ASS-1/100SS Simplex Short Pitch Stainless Steel Roller Chain in our assembly lines for several months, and it’s been outstanding. The chain operates smoothly with minimal noise, even under heavy loads. It performs well in both high-speed operations and demanding conditions. Highly recommended for anyone in need of a durable and efficient solution.
⭐⭐⭐⭐⭐
Elena Petrova, Production Manager, Vortex Industries, Russia
The 20ASS-1/100SS Simplex Chain was very easy to install and has made a noticeable difference in our factory’s output. The chain runs smoothly and has significantly reduced system downtime. It’s holding up exceptionally well in our refrigeration units. A solid, reliable choice for high-demand environments.
⭐⭐⭐⭐⭐
Ricardo Fernandez, Equipment Engineer, Sevilla Transport Systems, Spain
We’ve been using this chain in our logistics equipment, and it has exceeded all expectations. The 20ASS-1/100SS Simplex Roller Chain offers fantastic durability even under high torque, and the performance is consistent. Maintenance has been straightforward, with no issues related to wear or fatigue. A great investment for heavy machinery.
⭐⭐⭐⭐⭐
David Williams, Operations Manager, Summit Engineering, USA
The 20ASS-1/100SS Simplex Short Pitch Stainless Steel Roller Chain has been a game-changer for us. It’s been performing excellently in our heavy equipment, reducing vibrations and ensuring smooth operation even in challenging environments. While it is slightly more expensive than other options, its reliability and durability are absolutely worth the investment. Would definitely buy again.
⭐⭐⭐⭐⭐
Sophie Müller, Factory Supervisor, Titan Manufacturing, Germany
We’ve installed the 20ASS-1/100SS Simplex Chain in our production line, and it’s handling high-speed and heavy-duty operations without any issues. The chain’s corrosion resistance is particularly impressive, especially in our humid environment. It has also helped reduce maintenance costs by preventing wear and tear. I highly recommend it for industrial use.

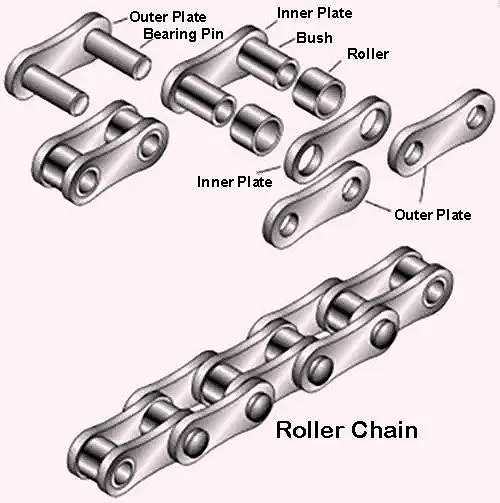

20ASS-1 Stainless Steel Chain Structure and Composition
The structure and composition of the 20ASS-1/100SS Simplex Short Pitch Stainless Steel Roller Chain are made up of several key components, each designed to work together for optimal performance in various industrial applications.
Chain Plate
The chain plate is the core structural element of the short pitch stainless steel roller chain. It consists of two main parts: the inner plate and the outer plate. These plates are connected by the pin shaft, which allows them to move in a synchronized manner. The plates are typically made from high-strength stainless steel to provide durability and resistance to corrosion, making them suitable for harsh environments.
Roller
The roller is the primary bearing element of the chain, providing the contact surface that helps the chain move smoothly along the sprockets. Each roller is composed of a roller body and a roller shaft. The roller body fits precisely over the inner and outer plates of the chain, with the roller shaft secured through the central opening of the roller. This design allows the roller to rotate freely, reducing friction and ensuring efficient power transmission.
Pin Shaft
The pin shaft serves as the critical connecting component of the chain, linking the chain plates to the roller. It passes through the inner plates and connects them to the rollers, enabling the chain to function as a cohesive unit. The pin shaft is made from stainless steel, ensuring both strength and resistance to wear. It plays a crucial role in maintaining the structural integrity of the chain, allowing it to operate under heavy loads and high-speed conditions.
Together, these components form the 20ASS-1/100SS Simplex Short Pitch Stainless Steel Roller Chain, offering high strength, corrosion resistance, and reliable performance in demanding industrial applications.
Advantages of the 20ASS-1/100SS Simplex Short Pitch Stainless Steel Roller Chain
The 20ASS-1/100SS Simplex short pitch stainless steel roller chain features a precision design that provides efficient and stable transmission performance in various industrial environments. The short pitch design makes the chain more compact, reducing vibration and noise during operation while improving overall transmission efficiency. For equipment that requires precise control, the 20ASS-1/100SS Simplex chain offers an ideal solution.
In transmission systems that demand high precision, the 20ASS-1/100SS Simplex short pitch stainless steel roller chain stands out. Its short pitch design reduces chain elongation while maintaining high accuracy and low friction operation, allowing the chain to work efficiently in smaller spaces, making it especially suitable for equipment with limited space. As a Simplex chain (single-strand chain), it delivers excellent performance in light-load, high-frequency applications in mechanical equipment.
FAQ
What are the ideal applications for the 20ASS-1/100SS Simplex Short Pitch Stainless Steel Roller Chain?
The 20ASS-1/100SS Simplex short pitch stainless steel roller chain is widely used in equipment that requires high-precision transmission, especially in industrial systems with limited space, such as automated production lines, food processing, and packaging machinery.
What advantages does this chain offer compared to other types of chains?
Compared to traditional chains, the 20ASS-1/100SS Simplex short pitch stainless steel roller chain has a smaller pitch, which reduces vibration and noise while improving transmission efficiency. It is particularly suitable for high-precision and light-load transmission systems.
How does the 20ASS-1/100SS chain perform in terms of corrosion resistance?
Made from high-quality stainless steel, the 20ASS-1/100SS chain offers excellent corrosion resistance, making it ideal for long-term, stable operation in environments exposed to moisture or chemical corrosion. It is well-suited for demanding industrial environments.
How can I ensure the optimal performance of the 20ASS-1/100SS Simplex chain?
To maintain optimal performance, it is recommended to regularly check the chain’s tension and lubrication, and ensure it operates under suitable working conditions. Avoid overloading and excessively high working temperatures for best results.
